MPPT Solar Charge Controller 40A 30A EASUN POWER Solar Controller LCD Solar Regulator 24V Solar Charger 12V Battery Charger

Regular price $143.46

Tax included.

ICharger Maximum Power Point Tracking (MPPT) Series

MPPT 24V 30A / 24V 40A

Solar Charge and Discharge Controller

Product Features

• With the advanced dual-peak or multi-peak tracking technology, when the solar panel is shadowed or part of the panel fails resulting in
multiple peaks on the I-V curve, the controller is still able to accurately track the maximum power point.
• A built-in maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems,
and raise the charging efficiency by 15% to 20% compared with the conventional PWM method.
• A combination of multiple tracking algorithms enables accurate tracking of the optimum working point on the I-V curve in an extremely
short time.
• The product boasts an optimum MPPT tracking efficiency of up to 99.9%.
• Advanced digital power supply technologies raise the circuit's energy conversion efficiency to as high as 98%.
• Charging program options are available for different types of batteries including gel batteries, sealed batteries, open batteries, lithium
batteries, etc.
• The controller features a limited current charging mode. When the solar panel power exceeds a certain level and the charging current is
larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.
• Instantaneous large current startup of capacitive loads is supported.
• Automatic recognition of battery voltage is supported.
• LED fault indicators and an LCD screen which can display abnormality information help users to quickly identify system faults.
• Historical data storage function is available, and data can be stored for up to a year.
• The controller is equipped with an LCD screen with which users can not only check device operating data and statuses, but also modify
controller parameters.
• The controller supports standard Modbus protocol, fulfilling the communication needs of various occasions.
• The controller employs a built-in over-temperature protection mechanism. When temperature surpasses the set value, the charging
current will decline in linear proportion to the temperature so as to curb the temperature rise of the controller, effectively keeping the
controller from being damaged by overheat.
• Featuring a temperature compensation function, the controller can automatically adjust charging and discharging parameters in order to
extend the battery's service life.
• TVS lighting protection.

Product Specification Parameters

Parameter

Value

Model

2420

2430

2440

System voltage

12V/24VAuto

No-load loss

0.7 W to 1.2W

Battery voltage

9V to 35V

Max. solar input voltage

100V(25℃ ) 90V(-25℃ )

Max. power point voltage range

Battery Voltage+2V to 75V

Rated charging current

20A

30A

40A

Rated load current

20A

Max. capacitive load capacity

10000uF

Max. photovoltaic system input power

260W/12V
520W/24V

400W/12V
800W/24V

520W/12V
1040W/24V

Conversion efficiency

≤ 98%

MPPT tracking efficiency

> 99%

Temperature compensation factor

- 3mv/ ℃ /2V ( default )

Operating temperature

- 35 ℃ to ﹢ 45 ℃

Protection degree

IP32

Weight

1.4Kg

2Kg

2Kg

Communication method

RS232

Altitude

≤ 3000m

Product dimensions

210 × 151 × 59.5mm

238 × 173 × 72.5mm

238 × 173 × 72.5mm

ICharger MPPT 24V 20 30 40A Discription-1

ICharger MPPT 24V 20 30 40A Discription-2
ICharger MPPT 24V 20 30 40A Discription-3

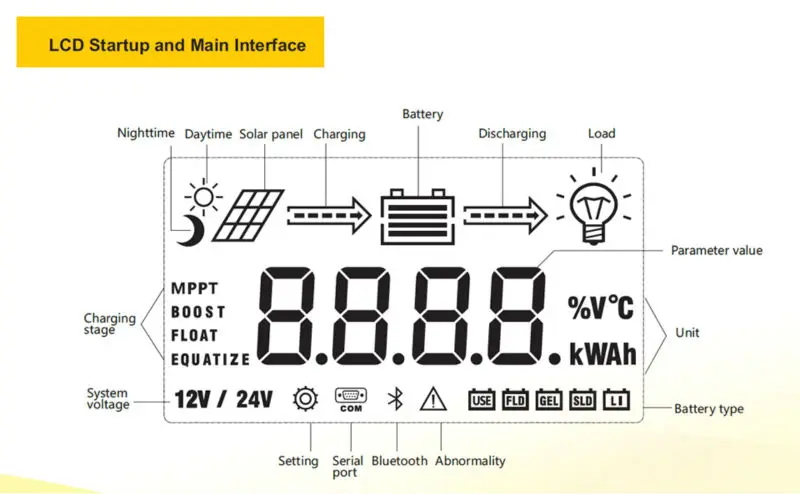

Product Operation and Display

ICharger MPPT 24V 20 30 40A Discription-4ICharger MPPT 24V 20 30 40A Discription-5

ICharger MPPT 24V 20 30 40A Discription-7

EASUN POWER Production Line
