EASUN POWER MPPT Solar Inverter 2400W 3KVA 24V 220V Hybrid Inverter Pure Sine Wave Built-in 60A MPPT Solar Controller Charger
ISolar SML 3KVA 24V PLUS is a Competitive Cost 3KVA 2400w 24Vdc Off Grid Solar Power Inverter MPPT Solar Inverter with 60A MPPT Solar Charger and 30A AC Charger
It is a Pure Sine Wave Hybrid Solar Inverter Built-in 60A MPPT Solar Charge Controller for Home Use
Design with ac input /output 220-240vac single phase only. ( not Split phase 110/220vac)
This is multi-function inverter/charger ,combining functions of inverter,MPPT solar charger and battery charger to offer uninterruptible power support with portable size .Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current .AC/Solar charger priority ,and acceptable input voltage based on different applications
Featurs:
-
Pure sine wave inverter
-
Built-in MPPT solar charge controller
-
Selectable input voltage range and frequency according to city power in your country
-
Charging current is setable according to your battery type
-
Configurable AC/Solar input priority via LCD setting
-
Compatible to mains voltage or generator power
-
Auto restart while AC is recovering
-
Overload and short circuit protection
-
Smart charging system optimizes battery performance
-
Cold start function
-
Parallelable up to 6 units which available on 4K/5K only

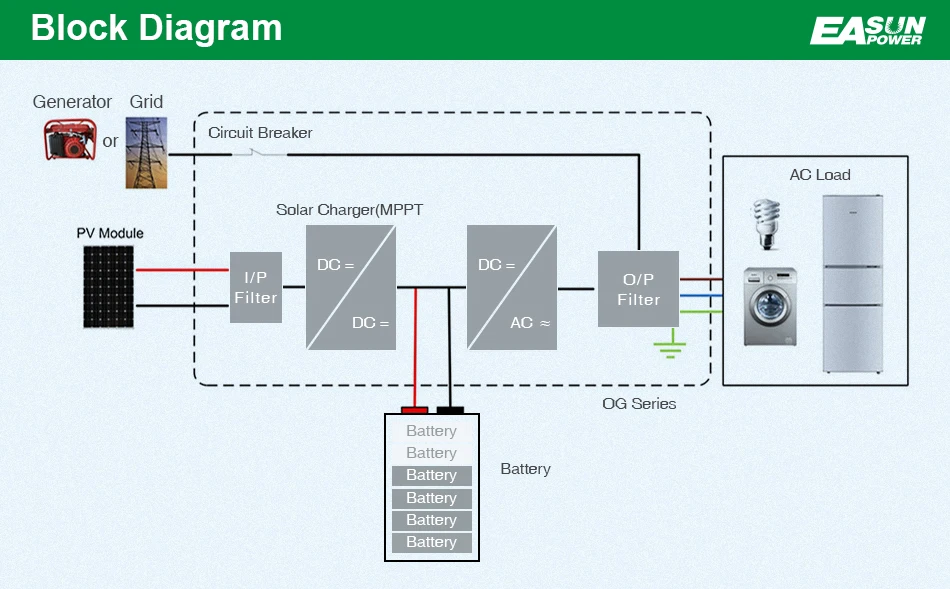

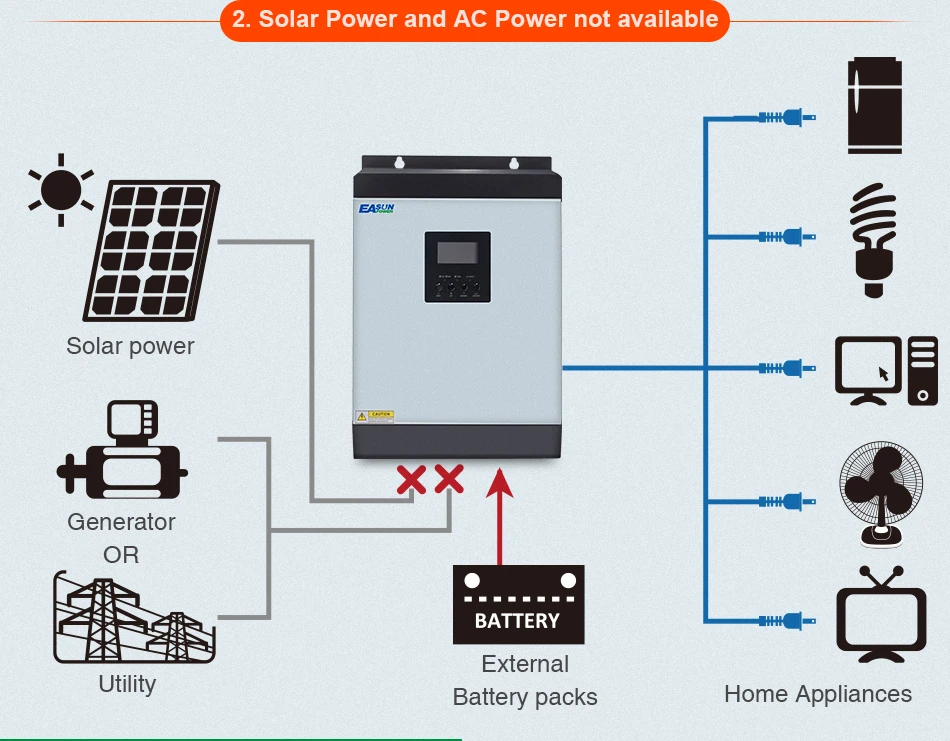

Basic System Architechture:
The following illustration sgiws basic application for this inverter/charger .It also includes following devices to have a complete running system :
-
Generator or Utility
-
PV modules (Option)
Consult with your system intergrator for other possible system architectures depending on your requirements .This invertert can power all kinds of applicances in home or office environment ,including motor-type applicances sucha as tube light ,fan,refrigenrator and air conditioner
|
|
Package Including :
-
The unit x 1
-
User Manual(English) x 1
-
Communication cable x 1
-
Software CD x 1
Q:My country uses 120v/240v Split Phase system. Can I use this inverter?
A:No, the Isolar SP SM SMV SPV SPL SML series which mark 220V, it is single pahse 220Vac input & output. It is always use in Europe market.,it can not slip into 2pcs of 110V.
We have only one modle can support this case, if you have demand, please click here:Igrid SV LV 6K
Q:My country uses 120v system. Can I use this inverter?
A:No, the Isolar SP SM SMV SPV SPL SML series which mark 220V you have purchased is 220v single phase output , it is suitable for country use 220V machine , like Europe country.
If you need 110V inverter for 110Vac input & output country like USA, please contact us or click here:110V input and output inverter
Please be careful before connecting any load you are not sure of, and check with us if you require assistance. If you are not sure , please contact us.
