5000VA MPPT Solar Hybrid Power Inverter for on/off Grid Tie PV System with Energy Storage DC48V PH18-5048 PLUS
4KVA/5KVA High Frequency On/Off Grid Hybrid Solar Inverter
Pure Sine Wave Power Inverter
-- Parallel board optional
--Wi-Fi plug optional
-
Pure sine wave output
-
On/off grid inverter with energy storge
-
Multiple operations: on-grid, off-grid,g rid-tie with battery back-up also recognized as grid-interactive
-
Built-in mppt solar charge controller
-
Selectable input voltage range for home appliances and personal computers
-
Selectable charging current based on applications
-
Configurable AC/solar input priority via LCD settin
-
Compatible to mains voltage or generator power
-
Auto restart while AC is recovering
-
Smart battery charger design to optimize battery performance
-
Cold start function
-
Parallel operation with up to 3 umits(available for MUST PH18-4K/5K MPK Plus)
-
Optional remote control panel availabl
Introduction :
This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger r and battery chargers to offer uninterruotible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
There are three colors inverters, We will send Randomly.
Product Specification:
| MODEL |
PH18-4048 Plus |
PH18-5048 Plus |
|
| Nominal Battery System Voltage |
48VDC |
48VDC |
|
| INVERTER OUTPUT |
Rated Power |
4000VA/3200W |
5000VA/4000W |
| Surge Power |
8000VA |
10000VA |
|
| Waveform |
Pure Sine Wave |
||
| AC Voltage Regulation （Batt.Mode） |
220VAC/230VAC/240VAC ± 5% |
||
| Electric Current |
13A |
||
| Output Frequency |
50Hz/60Hz Auto Sensing |
||
| THD（Linear loads） |
Off grid ≤2% |
||
| Grid discharge ≤3% |
|||
| Grid charge ≤3% |
|||
| Inverter Efficiency（Peak） |
93% |
||
| Transfer Time |
10ms(For PC) 20ms( For Other Home Appliance) |
||
| AC INPUT |
Voltage |
230VAC |
|
| Selectable Voltage Range |
170~280VAC(For Personal Computers),90~280VAC(For Home Appliances),184~253VAC(VDE4105) |
||
| Frequency Range |
50Hz/60Hz Auto Sensing |
||
| BATTERY |
Normal Voltage |
48VDC |
|
| Floating Charge Voltage |
54VDC |
||
| Overcharge Protection |
60VDC |
||
| SOLAR CHARGER & AC CHARGER |
Maximum PV Array Open Circuit Voltage |
145VDC |
|
| PV Array MPPT Voltage Range |
64∽130VDC |
||
| Standby Power Consumption |
2W |
||
| Rated Power |
4000W |
||
| Maximum Solar Charge Current |
80A |
||
| Maximum Efficiency |
98% |
||
| Maximum AC Charge Current |
60A |
||
| Maximum Charge Current |
120A |
||
| MECHANICAL SPECIFICATIONS |
Machine Dimensions (W*H*D)(mm) |
297.5*468*125 |
|
| Net Weight（Kg） |
13.5 |
14.5 |
|
| Package Dimensions(W*H*D)(mm) |
485*393*251 |
||
| Gross Weight（Kg） |
15.4 |
16.4 |
|
| OTHER |
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
| Operating Temperature |
0 ~55 |
||
| Storage Temperature |
-15 ~60 |
||
Features:
- Pure sine wave output
- On/off grid inverter with energy storge
- Multiple operations: on-grid, off-grid,g rid-tie with battery back-up also recognized as grid-interactive
- Built-in mppt solar charge controller
- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on applications
- Configurable AC/solar input priority via LCD settin
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Smart battery charger design to optimize battery performance
- Cold start function
- Parallel operation with up to 3 umits(available for MUST PH18-4K/5K MPK Plus)
- Optional remote control panel availabl
Basic system architecture
The following illustration basic application for this inter/charger. It also includes following
devicers to have a complete system:
Generator or utility;
PV modules(option)
This inverter can power all kinds of applicants in home or office environment, including motor-type
applicants such as tube light, fan, refrigerator and air conditioner.
product overview
1. LCD display 2. Status indicator 3. Charging indicator 4. Fault indicator
5. Function buttons 6. Power on/off switch 7. AC input
8. AC output 9. PV input 10. Battery input 11. Circuit breaker
12. RS485 communication port 13. Parallel communication port(only for parallel model)
14. Parallel switch (optional) 15. Dry contact 16. USB
Operating state description
Operation
Power on/off
Once the unit has been properly installed and the batteries are connected well,
simply press ON/OFF switch(located on the button of the case) to turn on the unit.
Operation and display panel
The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes three indicators,
four function keys and a LCD display, including the operating status and input/output power information.

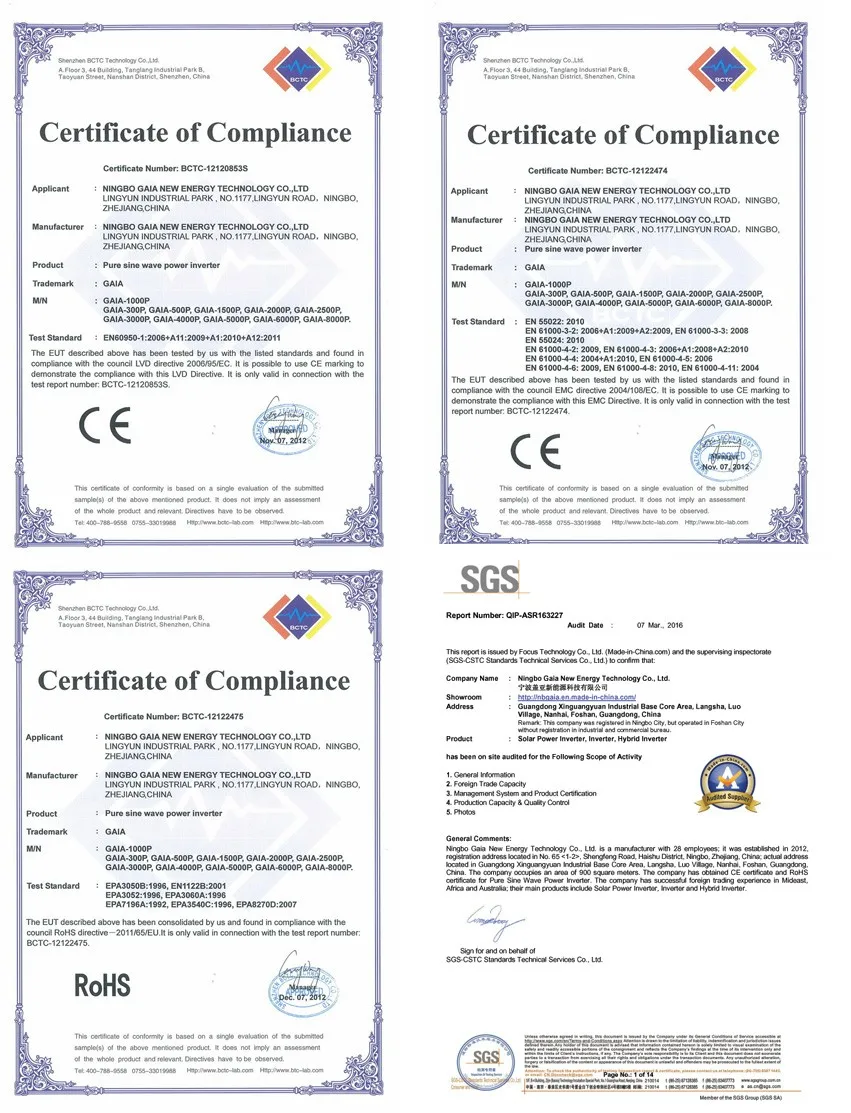

CE ROHS SGS Certification
