Flexible Solar Panel 80w 12V Outdoor Foldble Solar Panels Sets For Home Hiking/Boats/RV/ Solar Cell 18V Solar Charge panel

Regular price $210.38

Tax included.

80w 12V Flexible Solar Panel Outdoor Foldble Solar Panels Sets For Home Hiking/Boats/RV/ Solar Cell 18V Solar Charge panel

Model:FFSP-80M
Material:Monocrystalline silicon
Maximum Power(Pmax): 80W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):4.44A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):4.69A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:22x20x0.47(in)/54x50x1.2(cm)
Expansion Dimension:40x22x0.24(in)/100x54x0.6(cm)
Net Weight:2.4kg
Package Weight:3.1kg
Package Size:63x61x6cm

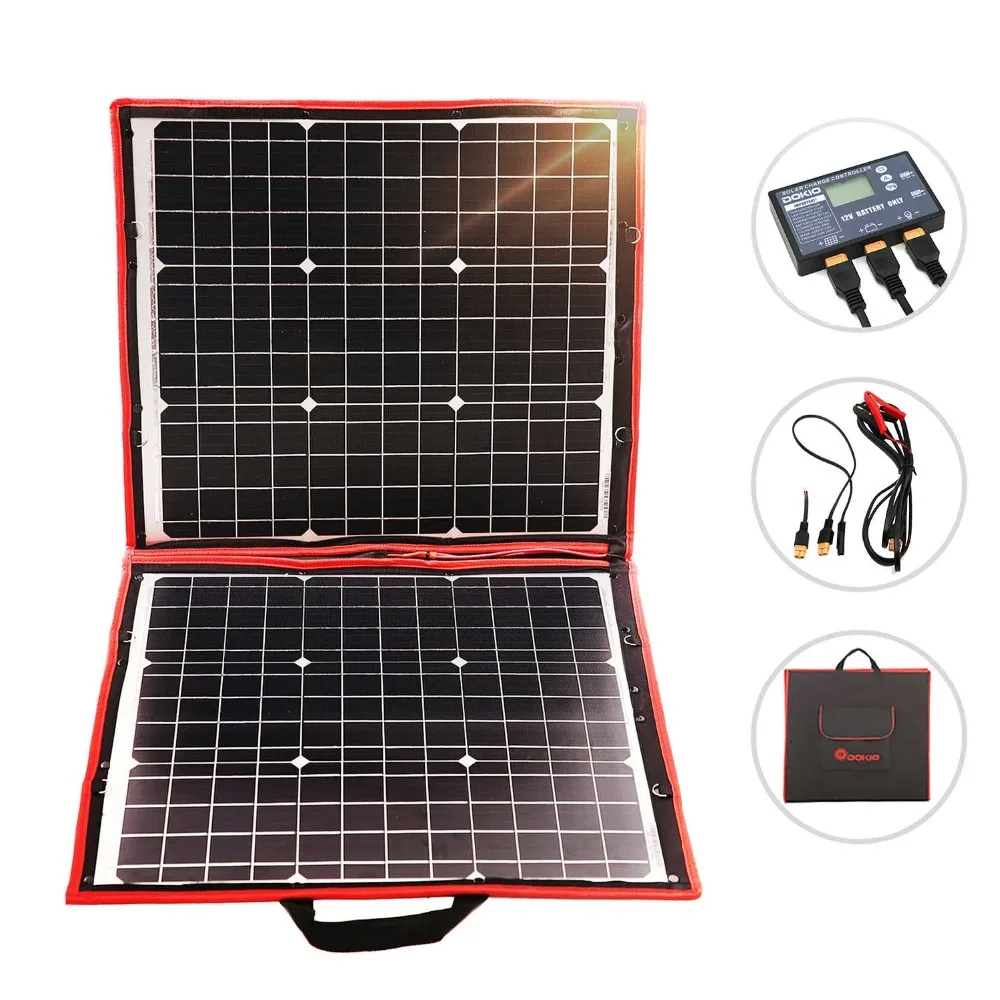

Package List:
1*80W Flexible Foldble Solar Panel(40W*2)
1*3M wire,1*10A 12Vcontroller,1*English User Manual
(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:
AM=1.5         IRRADIANCE=1000W/m2        Temp.=25℃

Material structure:

1 floor: ETFE
2 floor: EVA Film

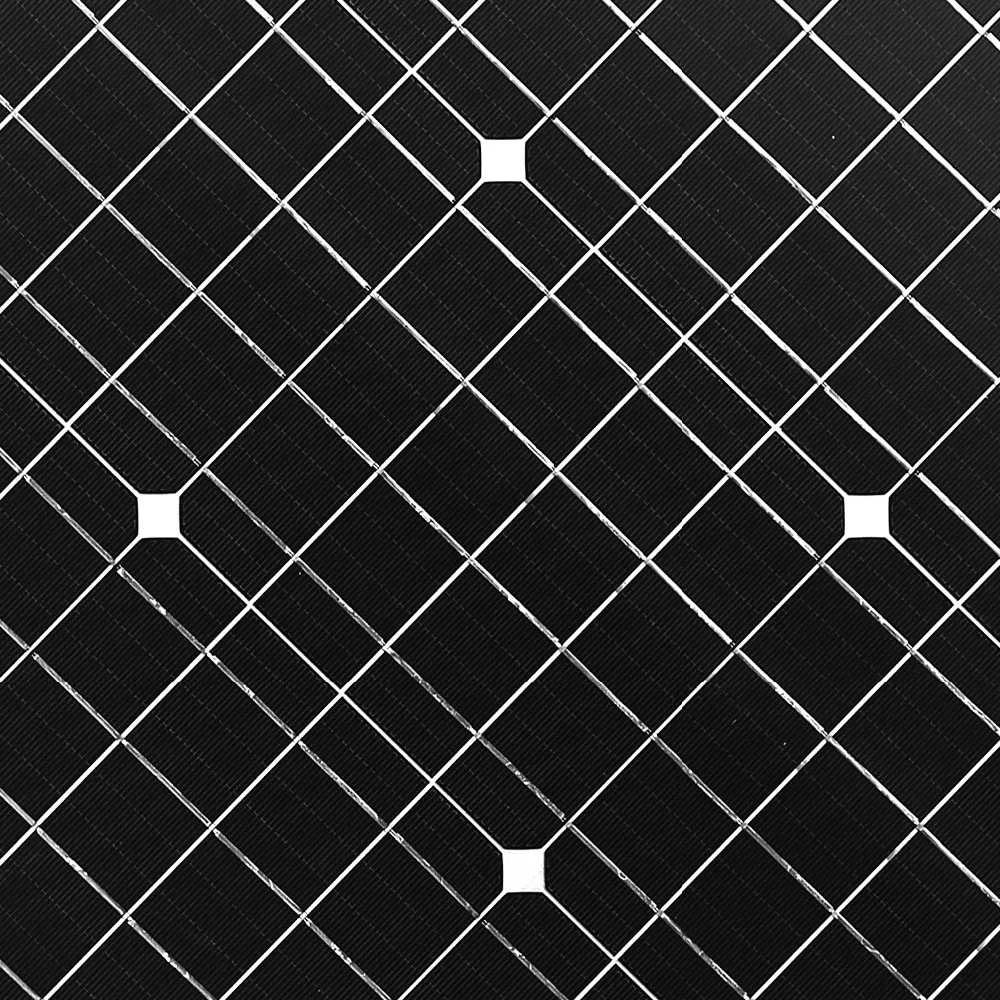

3 floor: High Efficiency Solar Cell
4 floor: EVA Film
5 floor: PCB(Aluminum plate)
6 floor: Cloth(waterproof,No soaking)



80w1FFSP-80w-主图941DY93shvvL000201020细节001细节01细节2细节3



QQ图片20190423162555_副本

11191r-G%2BA4MeL._SL1500_

包装001室内ffsp-80m方便携带001使用场景01

PS

1. In order to avoid the problem of insufficient wattage of high-power solar panels. In the production process, the manufacturing power of flexible folded solar panels will exceed the power in the product information. Under ideal conditions, maximum power can be achieved. The actual power is affected by environmental factors such as sunlight.

2.The dimensions of the solar panels are manually measured and there may be slight errors. But it does not affect the quality of the solar panels.

3.The flexible folding solar panel set is only suitable for use alone and cannot be connected in parallel and in series with other solar panels.

4.HIGH CONVERSION EFFICIENCY: With high efficiency monocrystalline solar cell, you will get greater power efficiency even though the panel is smaller than a traditional model.Maximizes system output by reducing mismatch loss; 100% EL testing on all DOKIO solar modules.

5.FOLDABLE AND PORTABLE DESIGN: The panel is well protected in a thick fabric pocket sewn. A practical carrying handle is available easy to carry and use and with, Ideal to use for camping, camping, climbing, hiking, picnic, charging your car battery, or in emergencies .

Maintenance of flexible folding solar panels:
1.In order to avoid friction on the folded surface, a soft plastic film can be added between the contact surface of the panel and the panel.
2.Since the flexible folded solar panels are too light, be careful not to be blown away by the wind when used outdoors.
3.Flexible folding solar panels have waterproof function but cannot be immersed in water.
