EASUN POWER Bluetooth Inverter 3000W 500Vdc PV 230Vac 24Vdc 80A MPPT Solar Charger Support Mobile Monitoring USB LCD Control

Regular price $707.32

Tax included.

Logistics Notice:

Fast Shipping from Europe:
Ship From Germany:  For All European Union Country,  Send by DHL, No tax duty,  delivery time is about 3-5 days;
​  [due to Aliexpress Shipping template ONLY Show above European Country, the other Europe Country(  Monaco /  Andorra  / Iceland  / Liechtenstein  / Macedonia  / San Marino  / Vatican City   )  still can be deliver from Germany warehouse]
Send to (  Switzerland / Norway / Turkey )  from Germany warehouse, need to pay import custom duty.
If you need to ship from Germany,please contact us.

Main Features

  • Max 3KVA/3KW output solar inverter for 48VDC systems
  • Supports batteryless operation
  • Max PV input 500Vdc
  • Removable LCD control display (20M)
  • Built-in Bluetooth for mobile monitoring(Android App is available)
  • Max 80A MPPT solar charger,Max Solar Power 4000W
  • Built-in  60A battery charging with EQUALIZATION feature
  • Total system max charging: 80A
  • Adjustable AC input voltage 90~280VAC
  • Supports 50hz or 60hz via LCD program
  • transformerless, light weight design
  • Built-in alarms and protections
  • fuse protection (against dc reverse polarity)

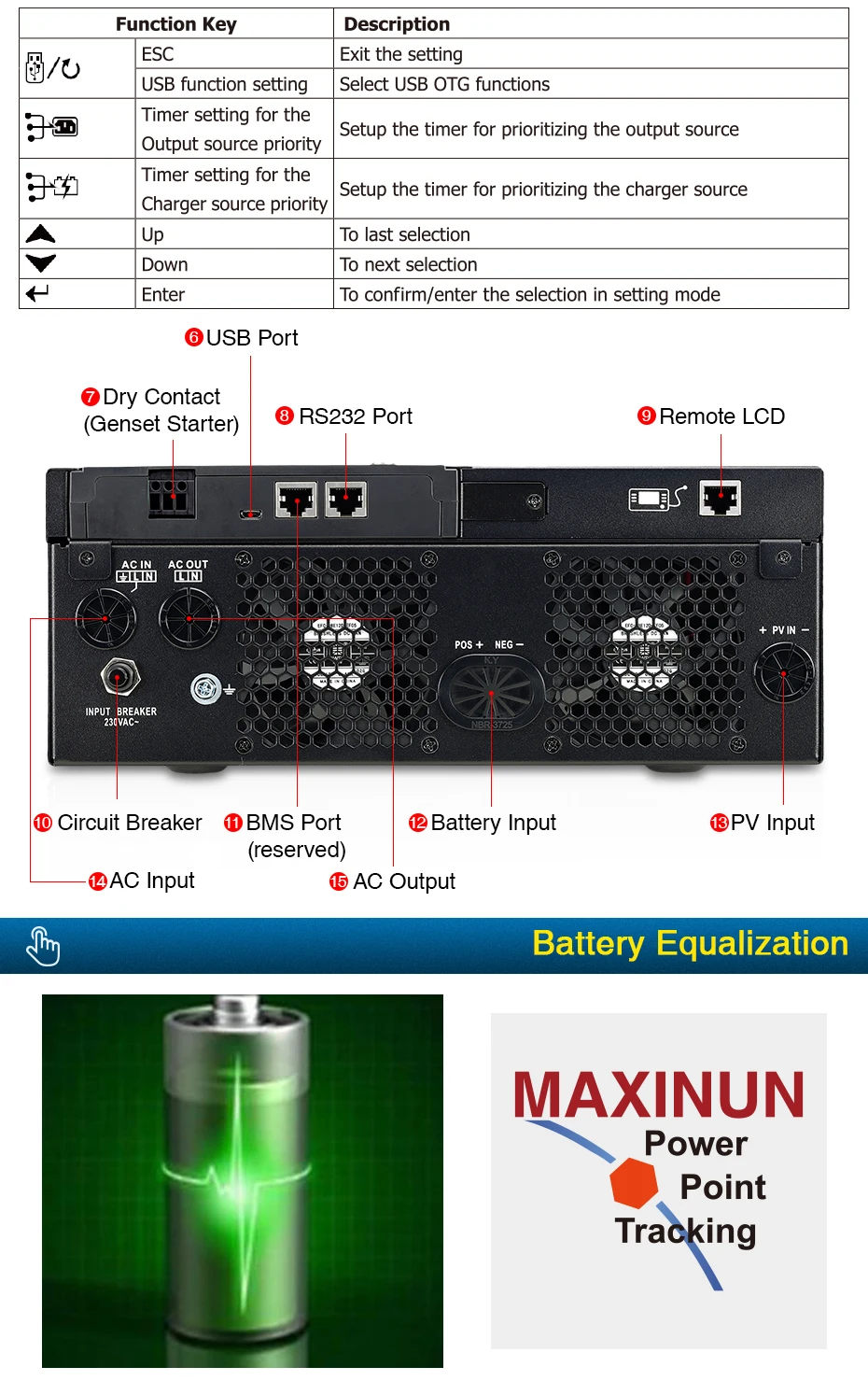

  • Removable USB + RS232 + RS485 + Dry contact communication po

ISolar V III Off-Grid lnverter

MODEL
ISolar SMV III 3K-24
ISolar SMV III 5K-48
Rated Power
3000VA/3000W
5000VA/5000W
INPUT
Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
230VAC ± 5%
Surge Power
6000VA
10000VA
Efficiency (Peak)
90% ~ 93%
Transfer Time
15 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform
Pure sine wave
BATTERY
Battery Voltage
24 VDC
48 VDC
Floating Charge Voltage
27 VDC
54 VDC
Overcharge Protection
33 VDC
63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type
MPPT
Maximum PV Array Power
4000W
MPP Range @ Operating Voltage
120 ~ 450 VDC
Maximum PV Array Open Circuit
500 VDC
Maxmum Solar Charge Current
80A
Maximum AC Charge Current
60A
Maximum Charge Current
80A
PHYSICAL
Dimension, D x W x H (mm)
115 x 300 x 400
Net Weight (kgs)
9
10
Communication Interface
USB/RS232/RS485/Bluetooth/Dry-contact
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity (Non-condensing)
Operating Temperature
-10°C to 50°C
Storage Temperature
-15°C to 60°C
