Solar Charge Controller MPPT for 12V 24V 36V 48V 72V 96V AGM Lifepo4 Lithium Battery

  • $70.00
    Unit price per
Shipping calculated at checkout.




Solar Charge Controller MPPT for 12V 24V 36V 48V 72V 96V  AGM Lifepo4 Lithium Battery

The V118 max efficiency is 98.2%.


​The V118  MPPT track speed is 6 times faster than V113.


The V118 Charging Voltage Accuracy is  ±0.2.


The V118 is better to charge lithium battery and fake V113 will overcharge the lithium battery.


​The voltage will be direct to set and display.


If your battery voltage range is 9-15V, then it's 12V system, you can set charging voltage from 12V-17V.

If your battery voltage range is 18-29V, then it's 24V system, you can set charging voltage from 24V-34V.

If your battery voltage range is 30-39V, then it's 36V system, you can set charging voltage from 36V-51V.

If your battery voltage range is 40-60V, then it's 48V system, you can set charging voltage from 48V-68V.




Content included:

1 MPPT solar controller

1 manual



80A Plus: Two PCS 40A to be in parallel as 80A.

100A Plus: Two PCS 50A to be in parallel as 100A.

120A Plus: Two PCS 60A to be in parallel as 120A.

150A Plus: Three PCS 50A to be in parallel as 150A.

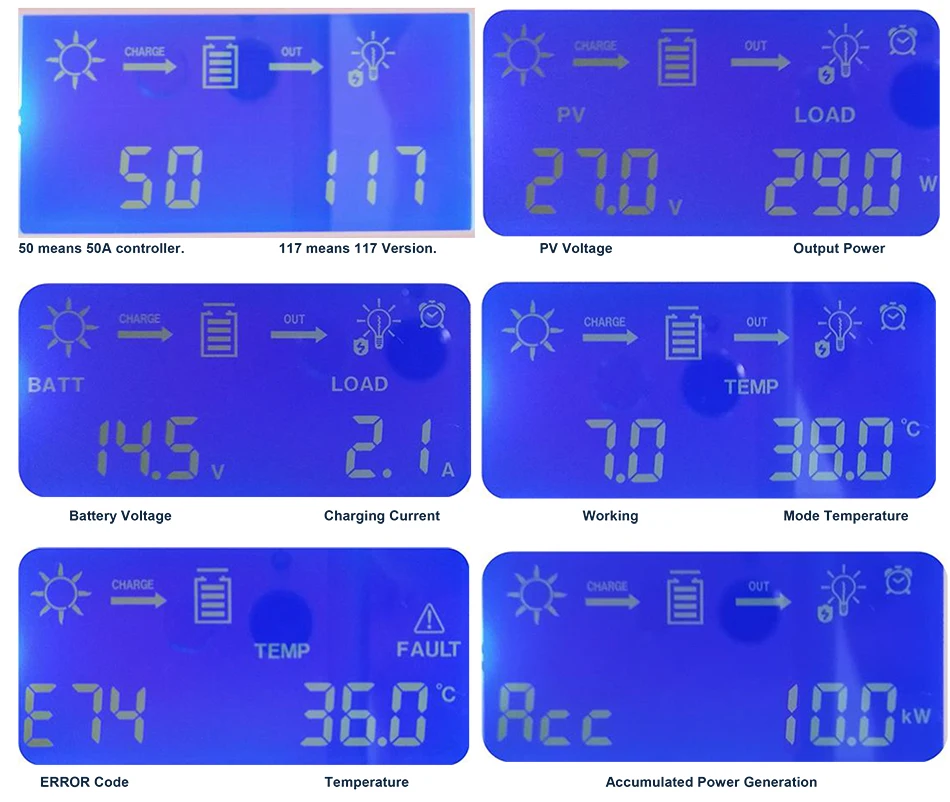

V117, Please see pictures:

50 means 50A controller-950

To whom may be concerned,

Thank you for your trust of our products, to protect our clients and our brand, we updated the firmware to be newest version V118 with more function and better quality.

Reminder:

And now it's easy to distinguish the fake product as picture. And the fake controller charging voltage will rise suddenly. You may save some bucks in the beginning, but your battery will be cooking. If you check more information from internet, you will know this condition.

V116 V112-117-2




MakeSkyBlue Catalogue-V1

Notes:

The V117 version output terminal is for 5A DC loads ( 12V system less 60W, 24V/36V/48V system less 100W ), and the old types only can connect lamp. The output for battery is no polarity reverse protection.

MakeSkyBlue Catalogue-V1-1

MakeSkyBlue Catalogue-V1-2




----------------------------------------------------------------------------------------------------------------


1. The advanced application for V117 30A, 40A, 50A and 60A:





​If you want to control a big current load such as 100A, you could use the OU terminals to control it as below pictures.


1-1

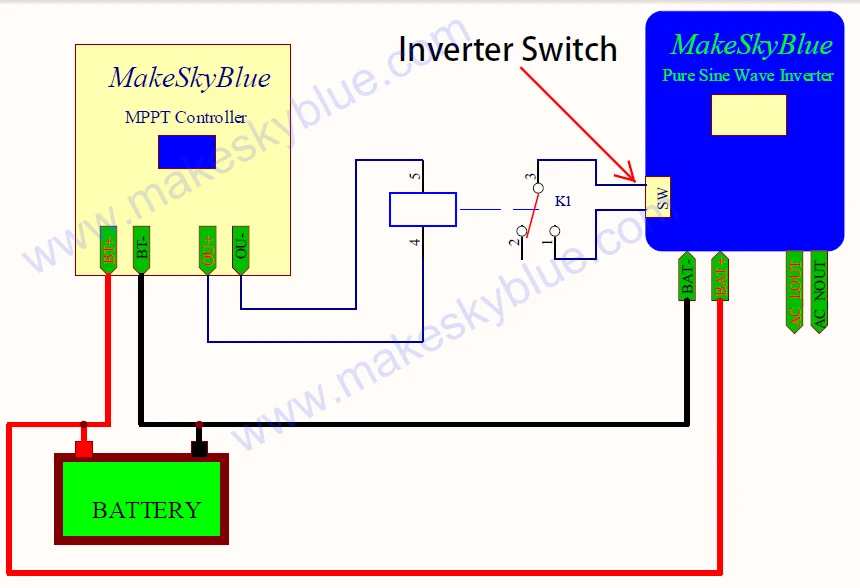

(Figure 1):Using a relay to control a small current switch to achieve an inverter switching machine.




1-2

(Figure 2):Use relay to control high current load input circuit-loop.







2. The advanced application for V117 50A and 60A:


If your load device is shorted or over-current, the controller will start output short-circuit protection to close the output condition. When you disconnect the load and press ENT over 5 seconds, then output will turn on again. Please note that 30A and 40A do not have this function.





3. The advanced application for V117 50A and 60A:


If your load device is shorted or over-current, the controller will have output short-circuit protection and close the output. When you disconnect the load and press ENT over 5 seconds, then output will turn on again. Please note the 30A and 40A don't have this function.


The MPPT output of the battery voltage will not rise suddenly, and the controller doesn't cause the output voltage to overshoot through the  BMS protection board.


​By the way, the charging voltage of V117 version can be set from 12V to 17V compare to the fake products is from 13.5V to 17V.


​The discharge voltage can be set from 9.8V to 14V.





4. The advanced application for V117 30A, 40A, 50A and 60A:


The time and light control for OUTPUT will be accurate when you connect the lamp or other DC loads less 5A. The fake product can't use the time and light control and can't connect other DC load except the lamp.

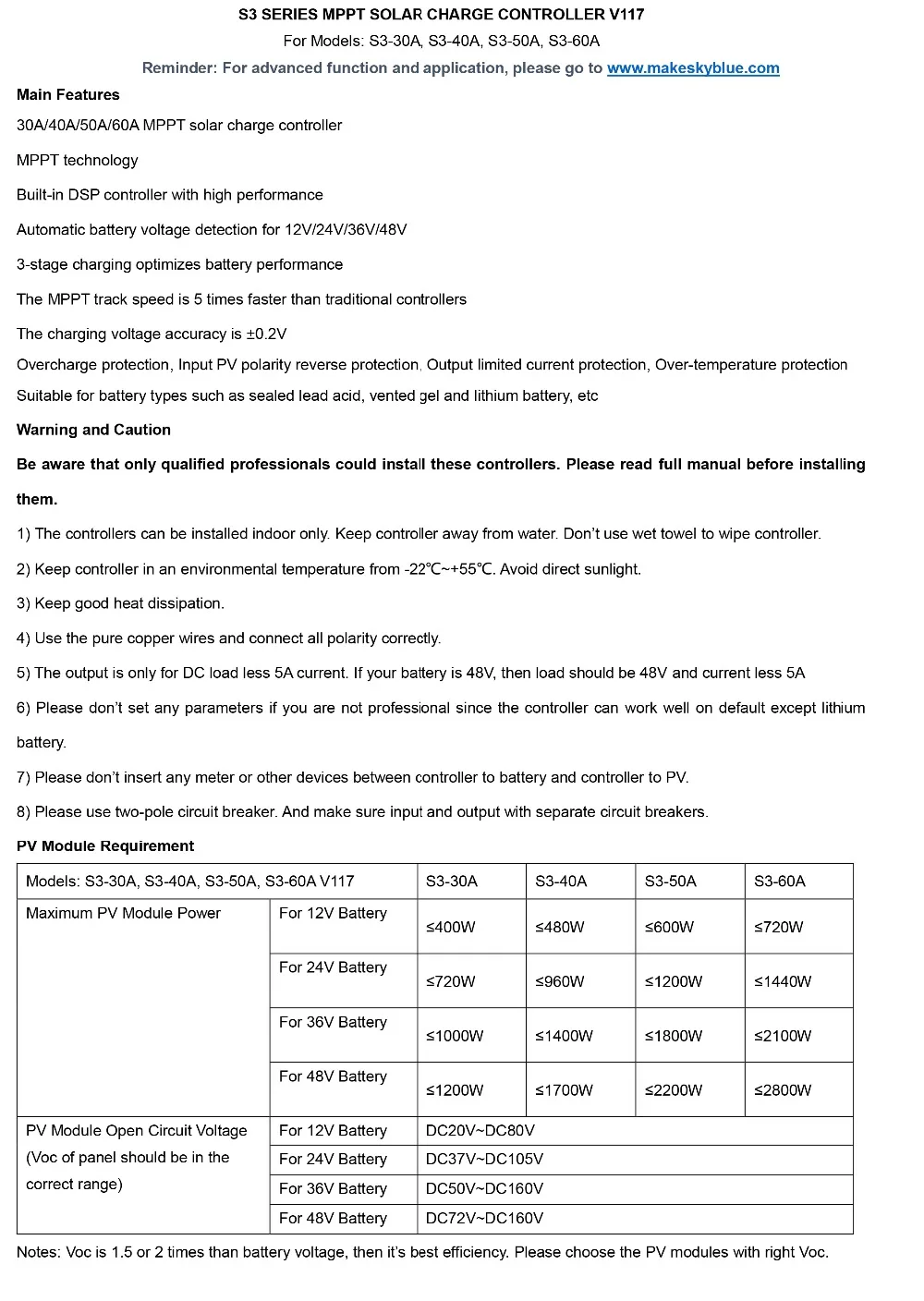

The V117 version manual:


S3-20180511--V117--1S3-20180511--V117--2S3-20180511--V117--3-





fake-V113



Reminder:    V117 can't be in parallel to V116 or other former versions since V117 is different motherboard.
